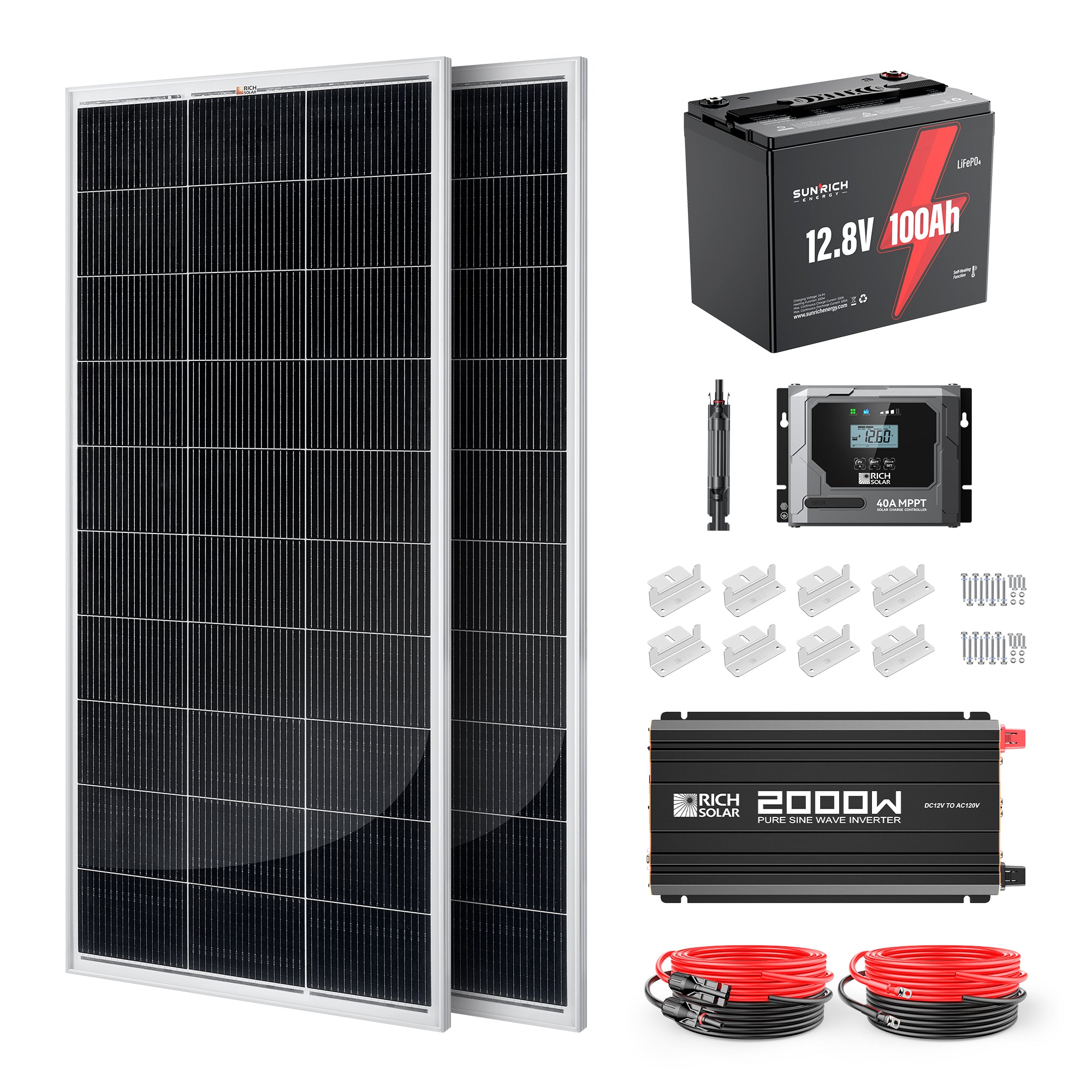

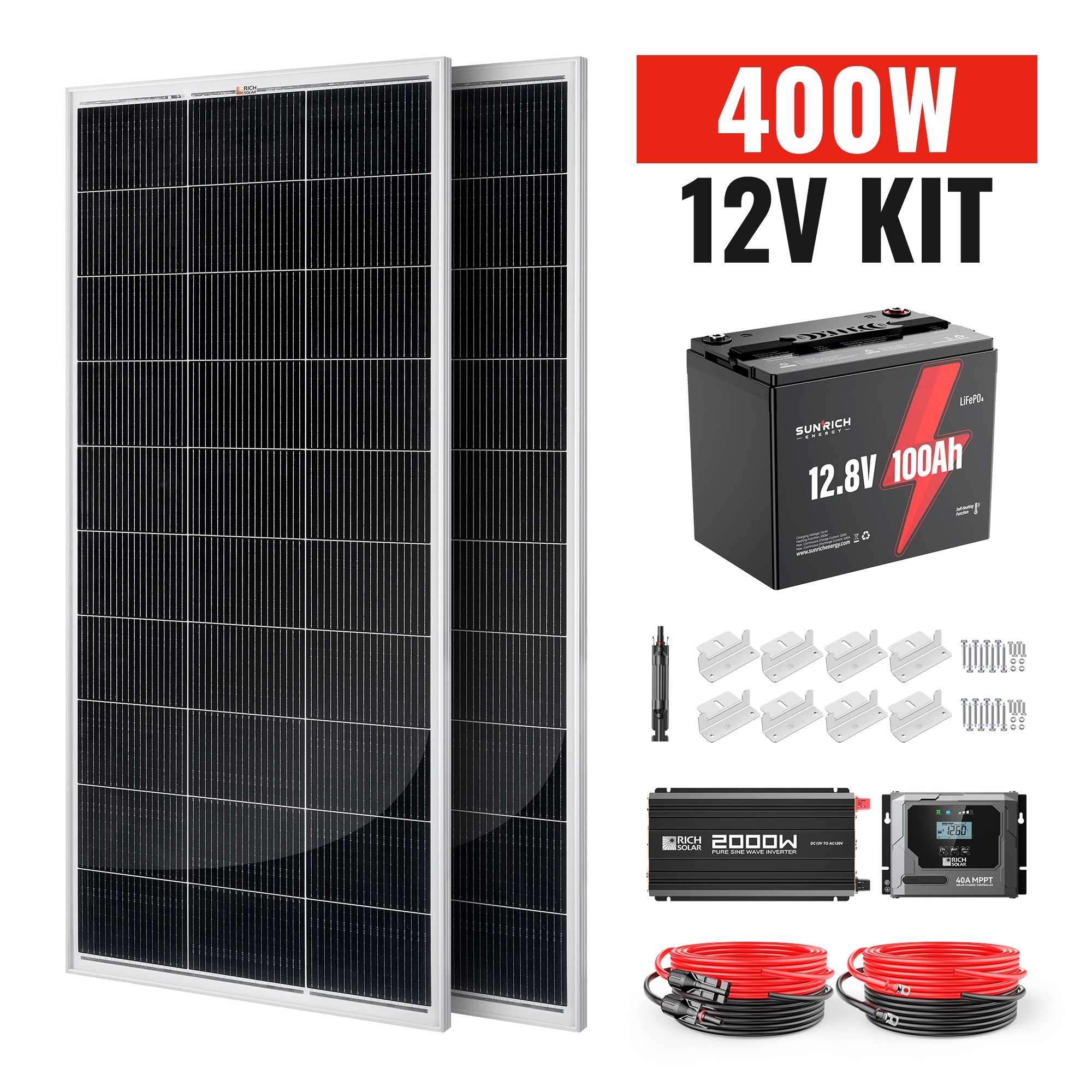

400 Watt 12 Volt Complete Solar Panel Kit with 100Ah LiFePO4 Battery, 2000W Pure Sine Wave Inverter
SKU: SE-CK400
Product Description
Technical Aspects
Shipping
FAQ
Warranty
Download Brochure
Product Description
Technical Aspects
| 200 Watt Solar Panel Specifications | |
| Maximum Power(Pmax) | 200W |
| Maximum Power Voltage(Vmp) | 18.4V |
| Maximum Power Current(Imp) | 10.9A |
| Open Circuit Voltage(Voc) | 21.8V |
| Short Circuit Current(ISC) | 11.6A |
| Weight | 23.6 lb |
| Dimensions | 58.7 x 26.8 x 1.2 in |
| Warranty | 25 years output warranty |
| 12V 100Ah Battery Specifications | |
| Nominal voltage | 12.8V |
| Nominal capacity | 100Ah |
| Nominal energy：1280Wh | Nominal energy：1280Wh |
| Nominal charging voltage | 14.4V |
| Maximum charging current | 100A |
| Maximum discharge current | 100A |
| Continuous discharge current | 100A |
| Size：10.2 x 6.6 x 8.3 in | Size：10.2 x 6.6 x 8.3 in |
| Weight：24.3 lb | Weight：24.3 lb |
| 2000W 12V Inverter Specifications | |
| Rated Voltage | 12V DC |
| Continuous Power | 2000W |
| Peak Surge | 4000W |
| Waveform | Pure Sine Wave |
| Input Voltage | 12V DC |
| Output Voltage | 120V AC |
| Output Frequency | 60 Hz |
| Output Efficiency | ＞88% |
| AC Output Sockets | 3 |
| USB Power Port | 5V / 2.1A |
| Power Output Control | AC On/off Switch |
| Operation Temperature | 14°F to 122°F |
| Dimensions | 16.1 x 9.6 x 4.0 in |
| Weight | 10.1 lb |
| 40A Charge Controller Specifications | |
| System Nominal Voltage | 12/24V Auto |
| Max. PV Open Circuit Voltage | 100VOC |
| Charging Technology | MPPT |
| Max PV Charging Current | 40A |
| Max. Recommended PV Input Power | 600 Watt (12V) / 1200 Watt (24V) |
| Battery Type Preset | Crystal, Gel, AGM, WET, Calcium / LCO, LFP, LTO |
| Housing Case Color | Black / Grey |
| IP Grade | IP43 for Inside PCBA, IP22 for Connection Area |
| Net Weight | 1.17kg / 2.58lb |
| Dimensions (L*W*H) | 195*142*74 mm / 7.7*5.5*2.9 in |
200 Watt Solar Panel Specifications:
Maximum Power(Pmax): 200W
Maximum Power Voltage(Vmp): 18.4V
Maximum Power Current(Imp): 10.9A
Open Circuit Voltage(Voc): 21.8V
Short Circuit Current(ISC): 11.6A
Weight: 23.6 lb
Dimensions: 58.7 x 26.8 x 1.2 in
Warranty: 25 years output warranty
12V 100Ah Battery Specifications:
Nominal voltage: 12.8V
Nominal capacity: 100Ah
Nominal energy：1280Wh: Nominal energy：1280Wh
Nominal charging voltage: 14.4V
Maximum charging current: 100A
Maximum discharge current: 100A
Continuous discharge current: 100A
Size：10.2 x 6.6 x 8.3 in: Size：10.2 x 6.6 x 8.3 in
Weight：24.3 lb: Weight：24.3 lb
2000W 12V Inverter Specifications:
Rated Voltage: 12V DC
Continuous Power: 2000W
Peak Surge: 4000W
Waveform: Pure Sine Wave
Input Voltage: 12V DC
Output Voltage: 120V AC
Output Frequency: 60 Hz
Output Efficiency: ＞88%
AC Output Sockets: 3
USB Power Port: 5V / 2.1A
Power Output Control: AC On/off Switch
Operation Temperature: 14°F to 122°F
Dimensions: 16.1 x 9.6 x 4.0 in
Weight: 10.1 lb
40A Charge Controller Specifications:
System Nominal Voltage: 12/24V Auto
Max. PV Open Circuit Voltage: 100VOC
Charging Technology: MPPT
Max PV Charging Current: 40A
Max. Recommended PV Input Power: 600 Watt (12V) / 1200 Watt (24V)
Battery Type Preset: Crystal, Gel, AGM, WET, Calcium / LCO, LFP, LTO
Housing Case Color: Black / Grey
IP Grade: IP43 for Inside PCBA, IP22 for Connection Area
Net Weight: 1.17kg / 2.58lb
Dimensions (L*W*H): 195*142*74 mm / 7.7*5.5*2.9 in
Shipping
FAQ
How soon can I expect the delivery?
You will receive the package within 3 to 5 business days after placing the order.
How do l register my product and activate my warranty?
Your warranty is activated the moment you make a purchase.
Will solar panels work in the winter in my state or province?
Wherever there is sunlight, solar panels will generate electricity. Cooler conditions, like those during the winter, can help improve solar panel performance. Solar panels can still generate electricity in cloudy conditions, just not as efficiently. The panel won't generate any electricity if there is any snow build-up on it, so make sure to keep the panel clear. This goes for any type of obstruction including shade or dirt.
Can the solar panel drain my battery at night?
If you have a solar charge controller installed in your system, there is no danger of a reverse current draining your battery.
Warranty
Solar Panel
25-year output warranty; 10-year workmanship warranty
Solar Charge Controller
2-Year Warranty
Inverter
2-Year Warranty
Battery
10-Year Warranty
