400 Watt 12 Volt Complete Solar Panel Kit with 100Ah LiFePO4 Battery, 2000W Pure Sine Wave Inverter

SKU: SE-CK400

Product form

$1,299.98$999.98


  • High-Efficiency Solar Panel:200W monocrystalline, anti-reflective for max absorption.
  • Easy Installation: No tools, plug-and-play compatible.
  • Reliable and Convenient: Digital MPPT shows voltage and prevents overcharge.
  • 25-Year Warranty: Built for long-term use.

    • Free Returns

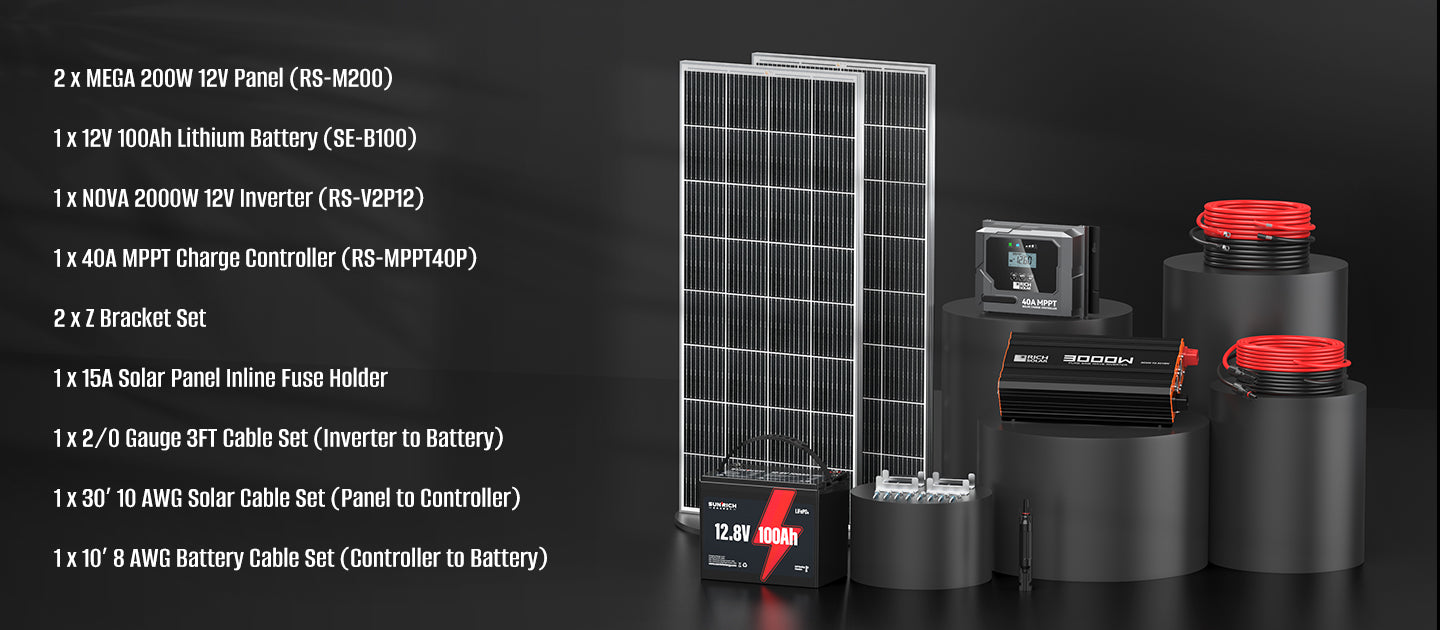

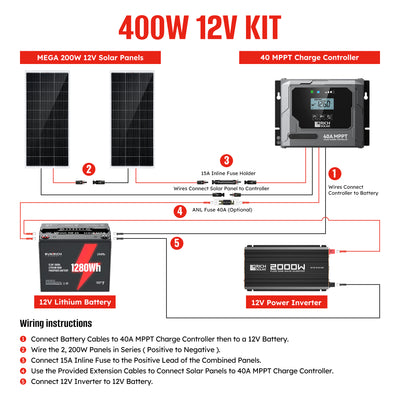

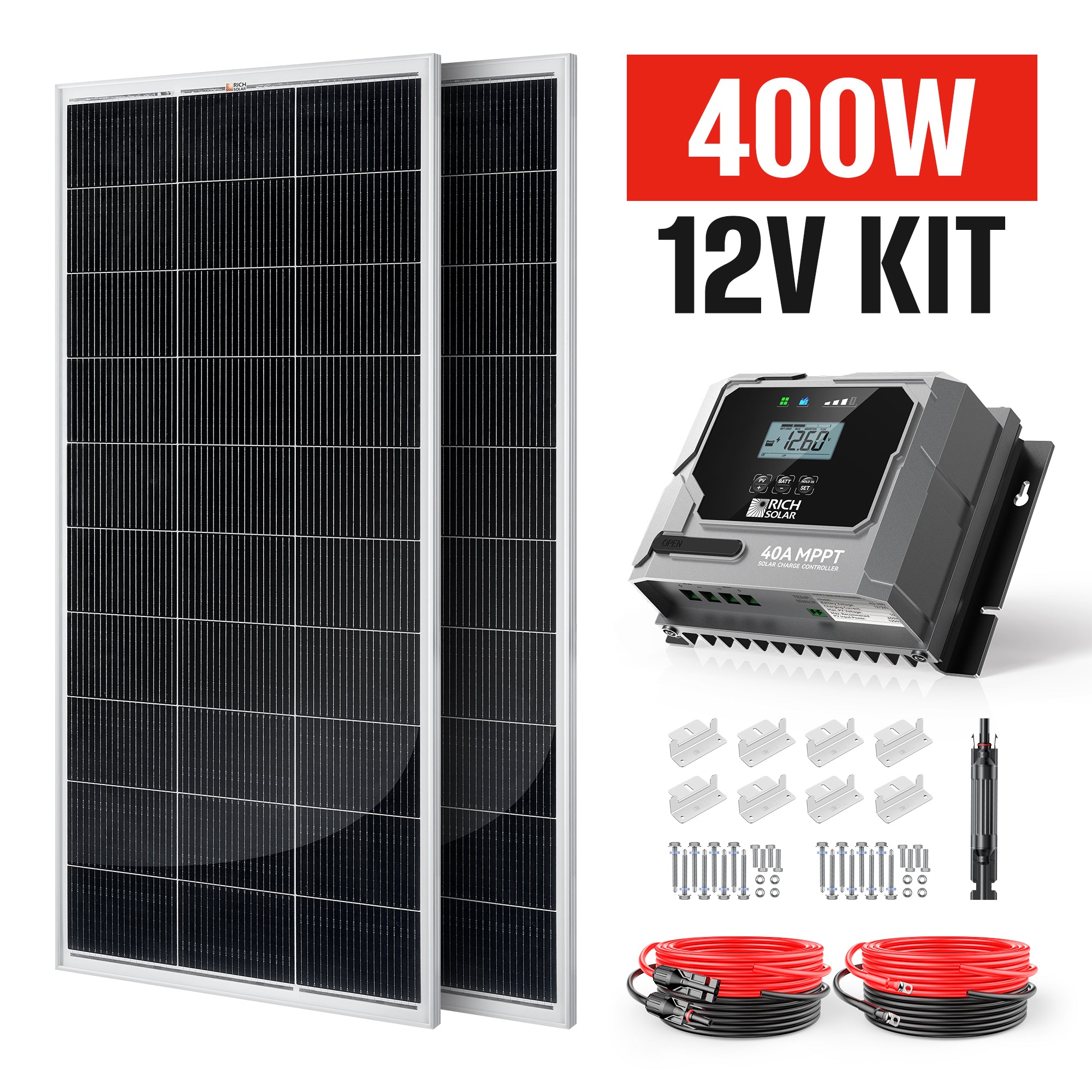

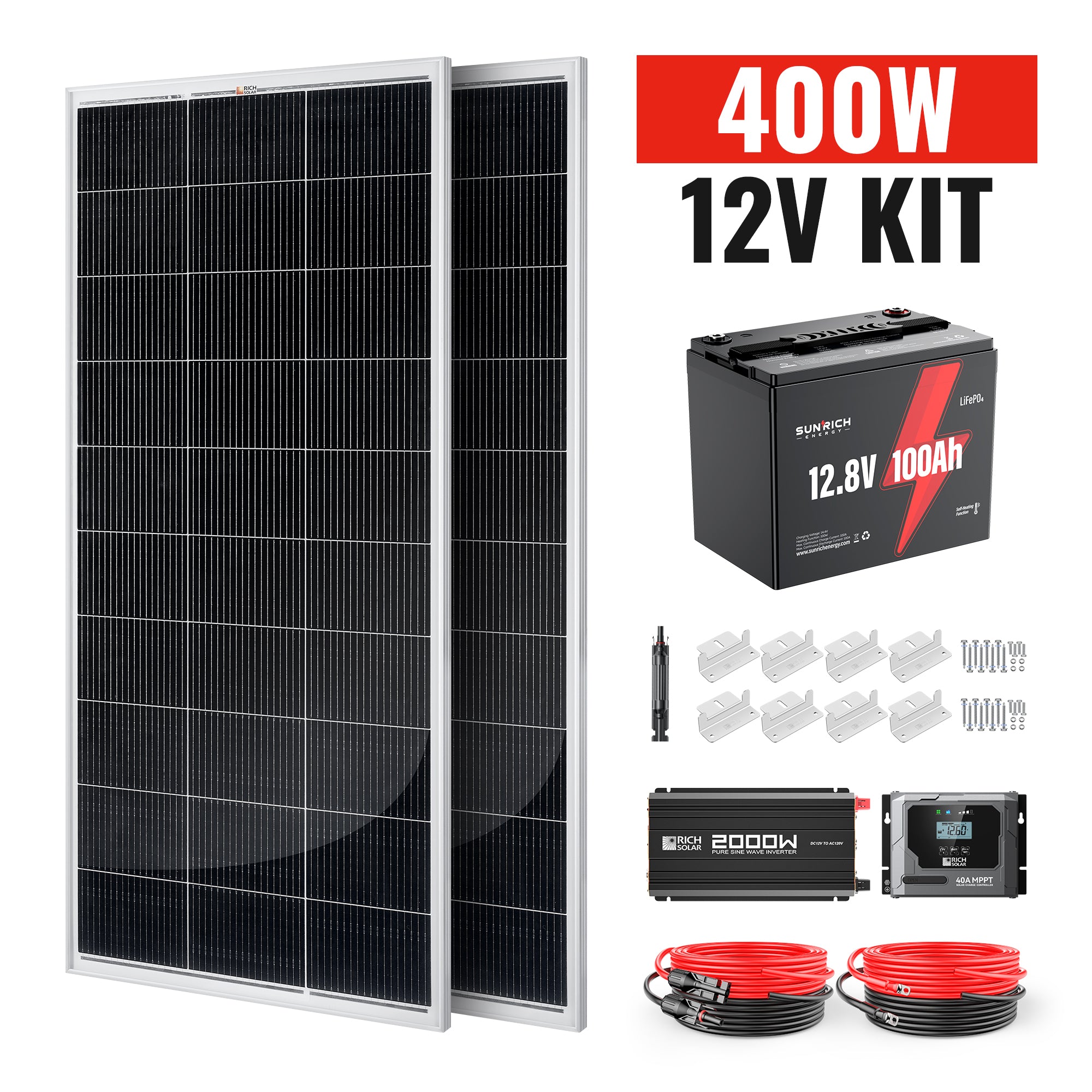

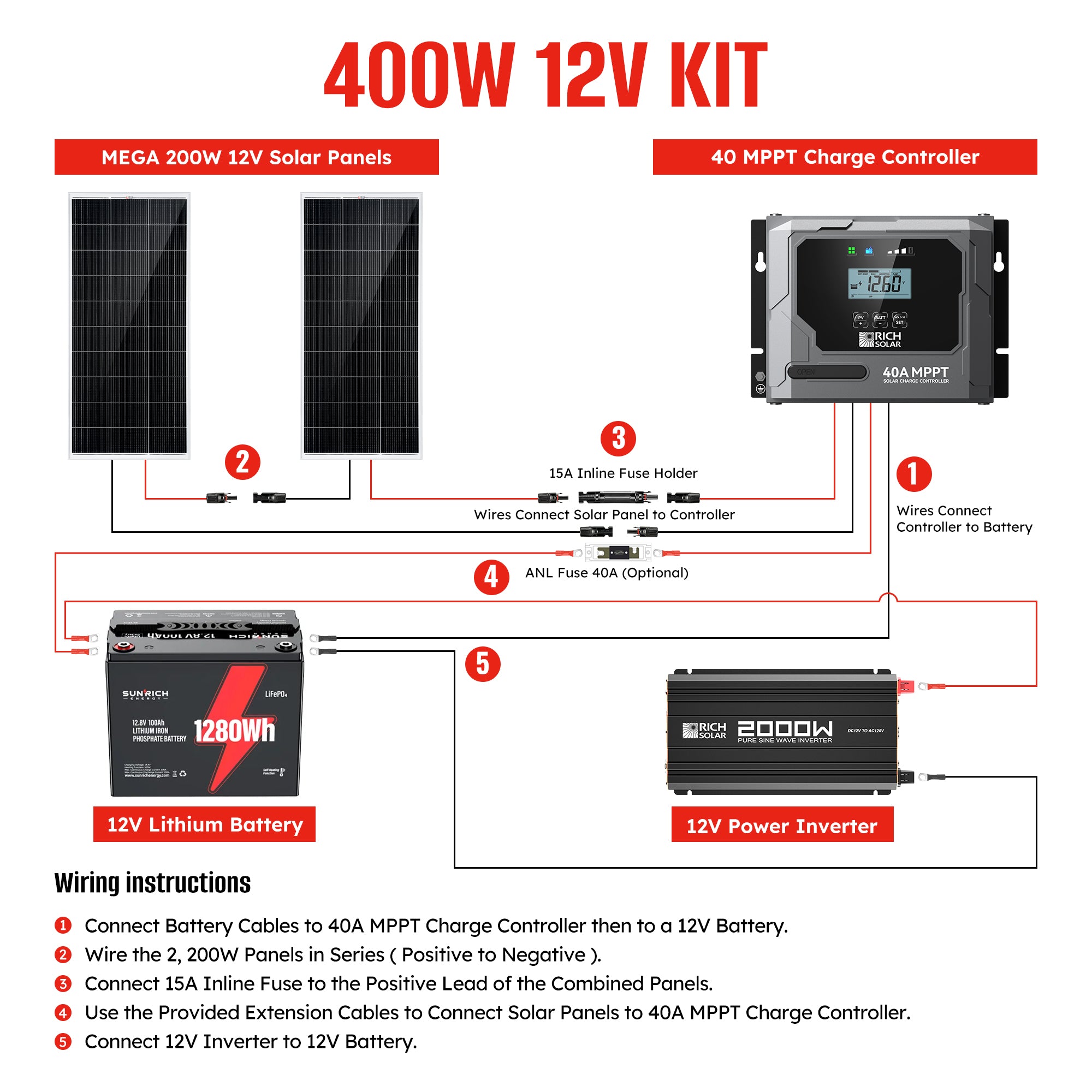

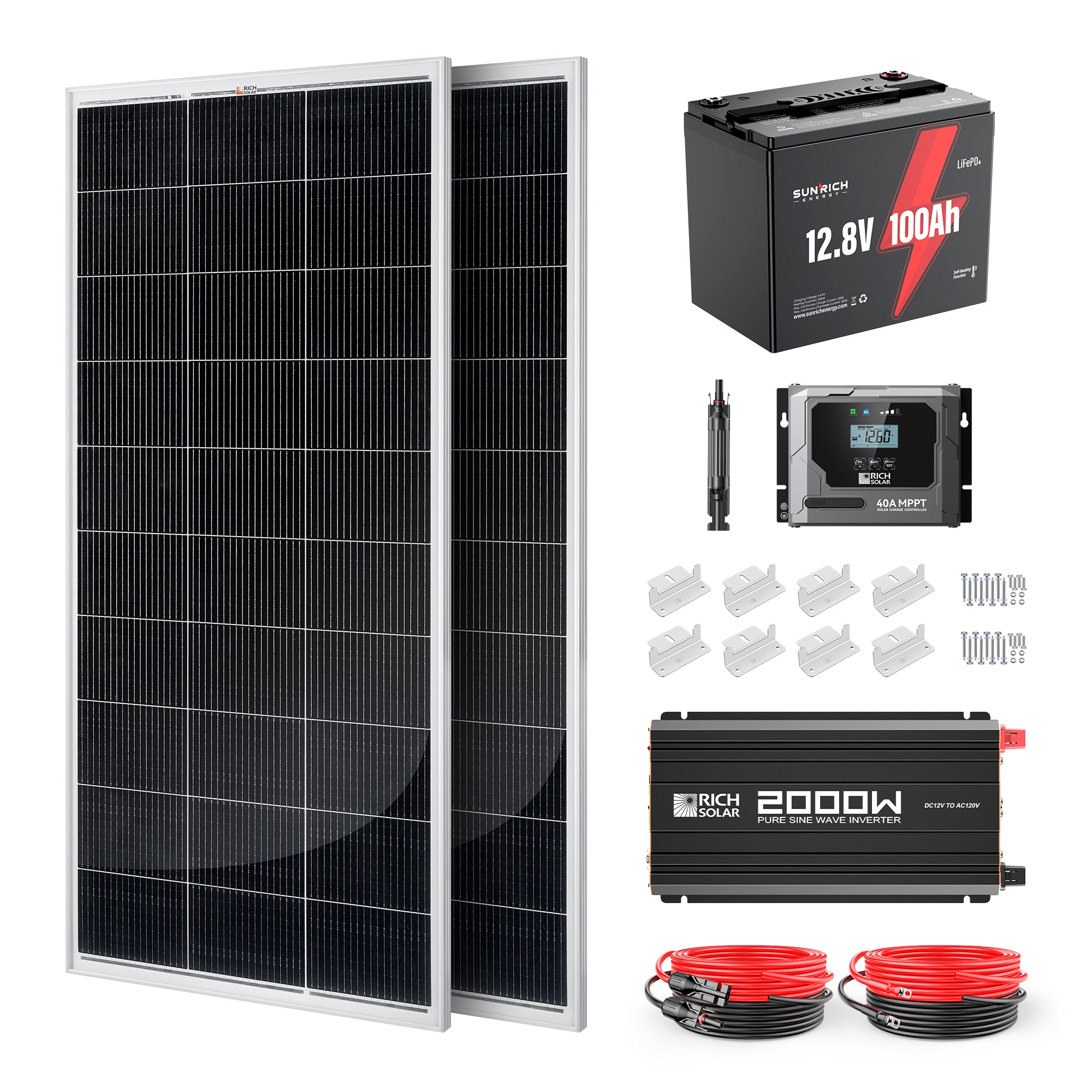

    The 400 Watt Complete Kit Includes:

    🗹 2 x MEGA 200W 12V Panel (RS-M200)
    🗹 1 x 12V 100Ah Lithium Battery (SE-B100)
    🗹 1 x NOVA 2000W 12V Inverter (RS-V2P12)
    🗹 1 x 40A MPPT Charge Controller (RS-MPPT40P)
    🗹 2 x Z Bracket Set
    🗹 1 x 15A Solar Panel Inline Fuse Holder
    🗹 1 x 2/0 Gauge 3FT Cable Set (Inverter to Battery)
    🗹 1 x 30’ 10 AWG Solar Cable Set (Panel to Controller)
    🗹 1 x 10’ 8 AWG Battery Cable Set (Controller to Battery)

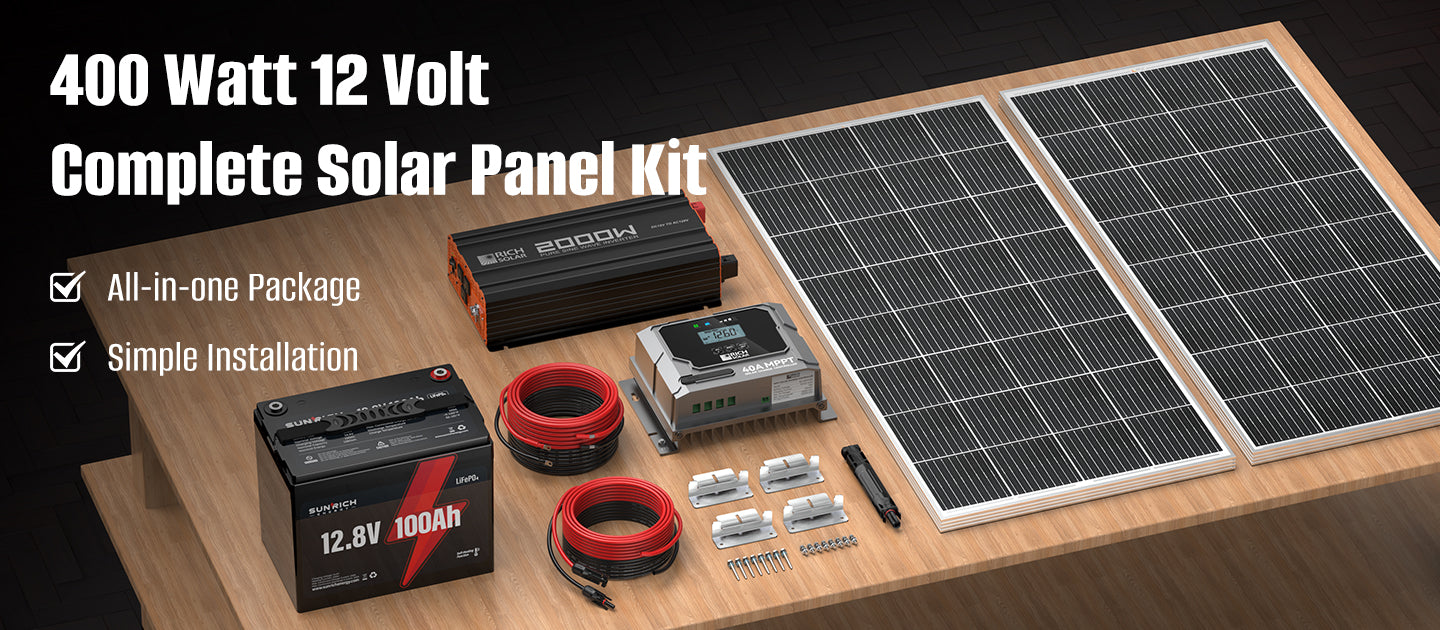

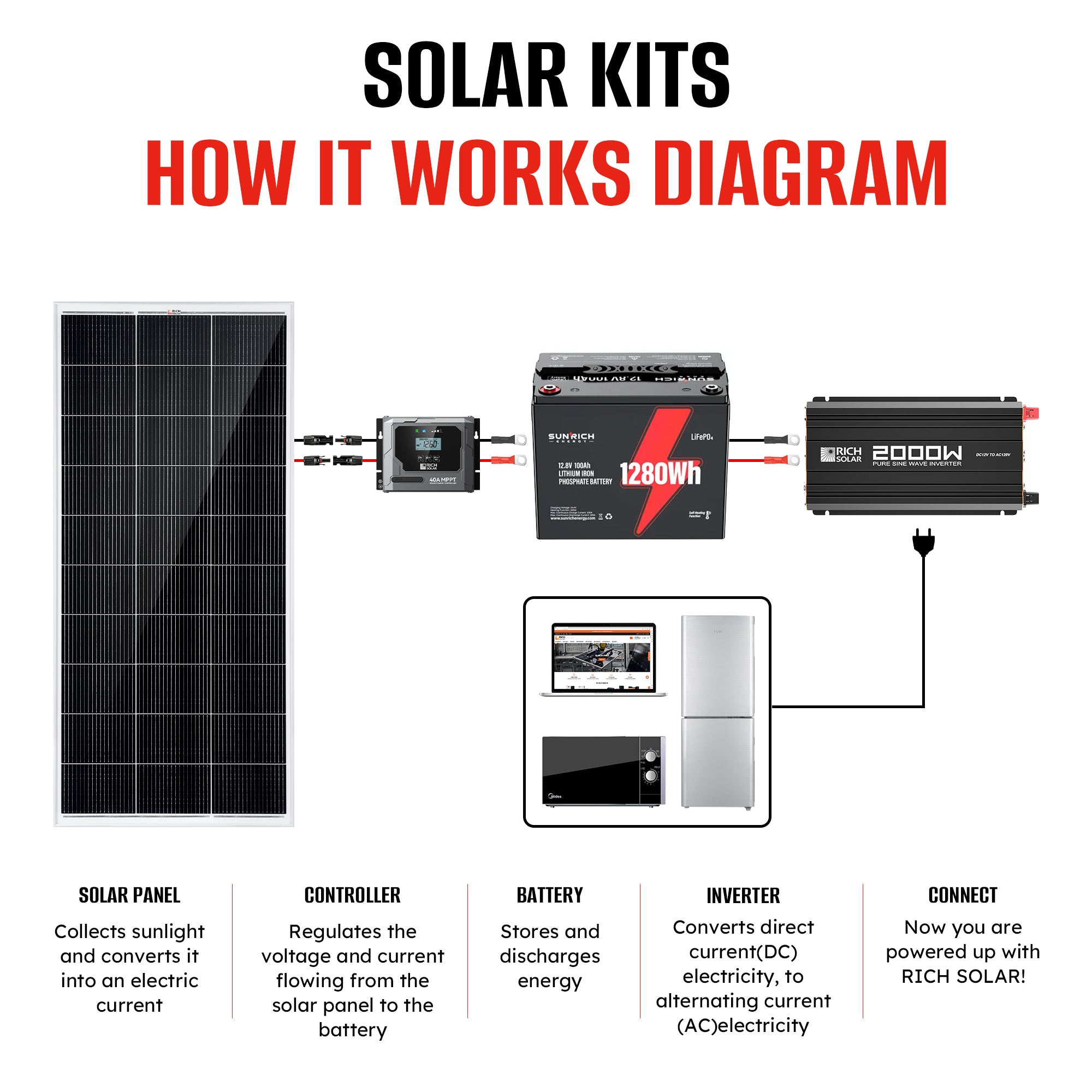

    Our 400W 12V Complete Solar Kit includes all the essential components to begin your solar journey. The kit features two high-efficiency 200W Monocrystalline panels, a 40A MPPT controller, a 2000W 12V inverter, and an ALPHA 1 Lithium battery. Ideal for your RV or tiny home, this kit makes embarking on your solar adventure easy and efficient. Start building your energy independence today!

    High-Efficiency Solar Panel
    Our 200-watt panel uses the highest-grade monocrystalline solar cells for optimal output and is treated with an anti-reflective coating to maximize light absorption for your solar-powered RV trailer.

    Simple Installation

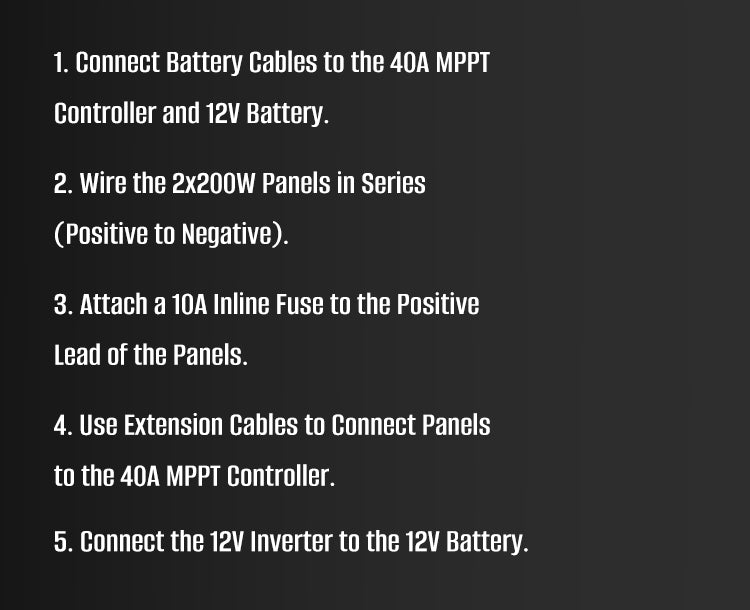

    Installation is a breeze with our pre-assembled wiring harness that doesn’t require crimping tools. Since all of our products are compatible with each other, expansions, upgrades, or additions are simple and easy… just plug in and go!

    Reliable and Convenient

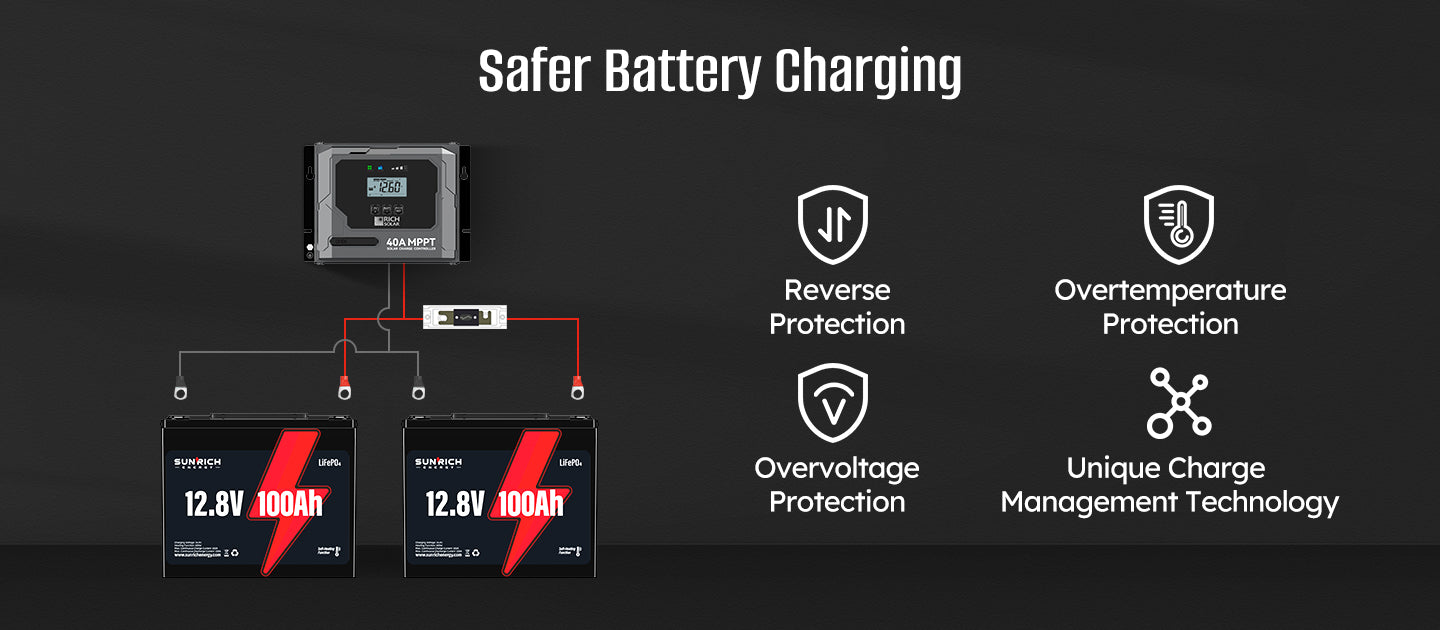

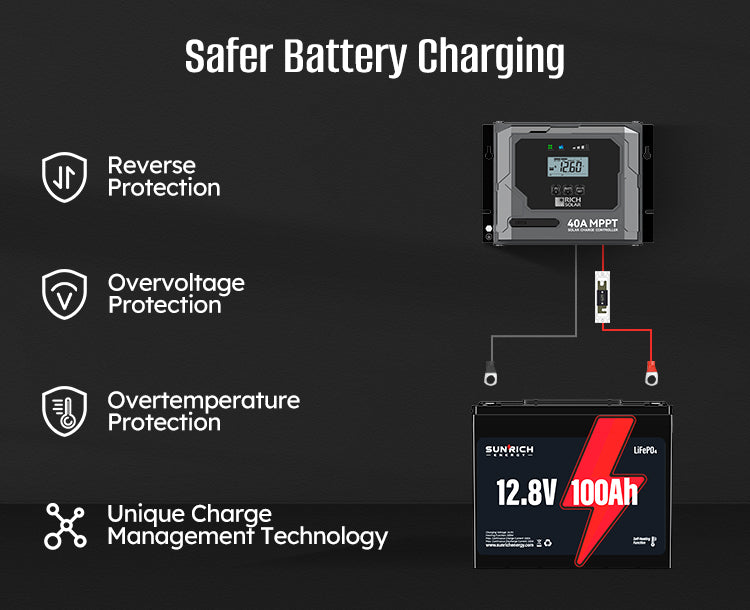

    The digital MPPT charge controller lets you gauge your power with a glance, providing real-time updates of volts, amps, and amp hours. Provide peace of mind by protecting your system from overcharging.

    25-Year Output Warranty
    Buy with confidence, knowing that your solar investment will last for the long haul.

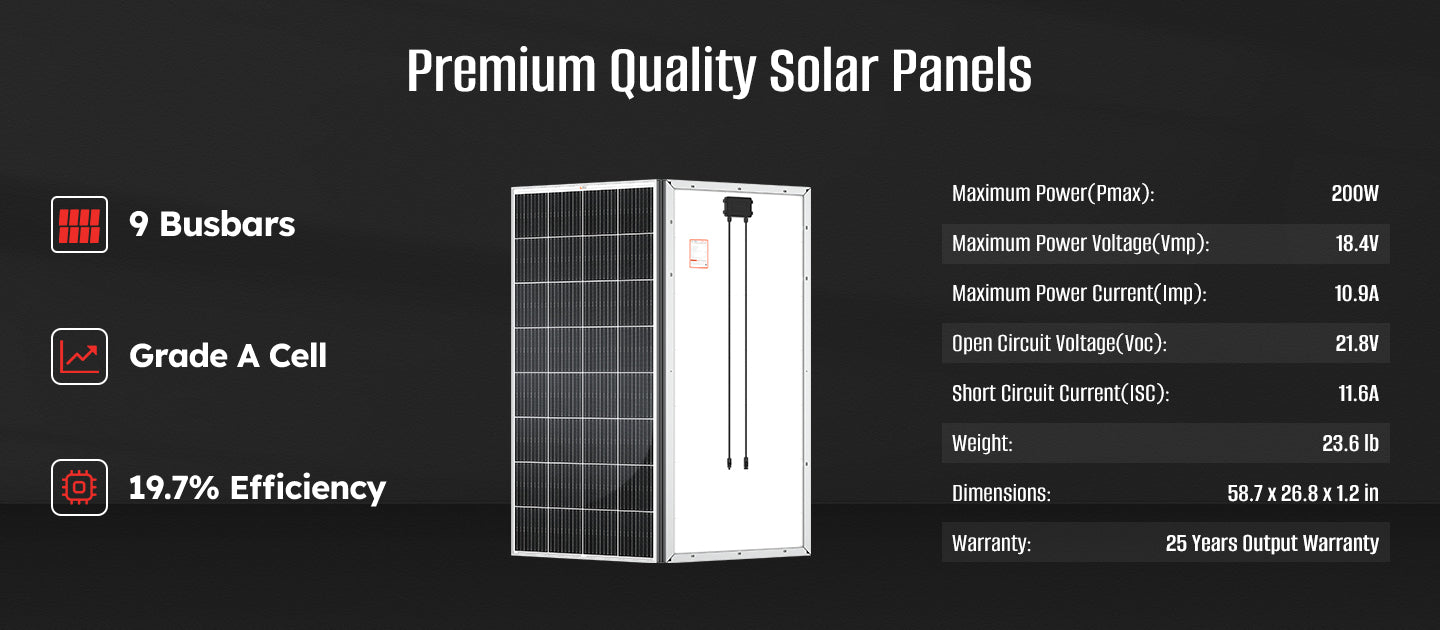

    200 Watt Solar Panel



    Maximum Power(Pmax): 200W
    Maximum Power Voltage(Vmp): 18.4V
    Maximum Power Current(Imp): 10.9A
    Open Circuit Voltage(Voc): 21.8V
    Short Circuit Current(ISC): 11.6A
    Weight: 23.6 lb
    Dimensions: 58.7 x 26.8 x 1.2 in
    Warranty: 25 years output warranty

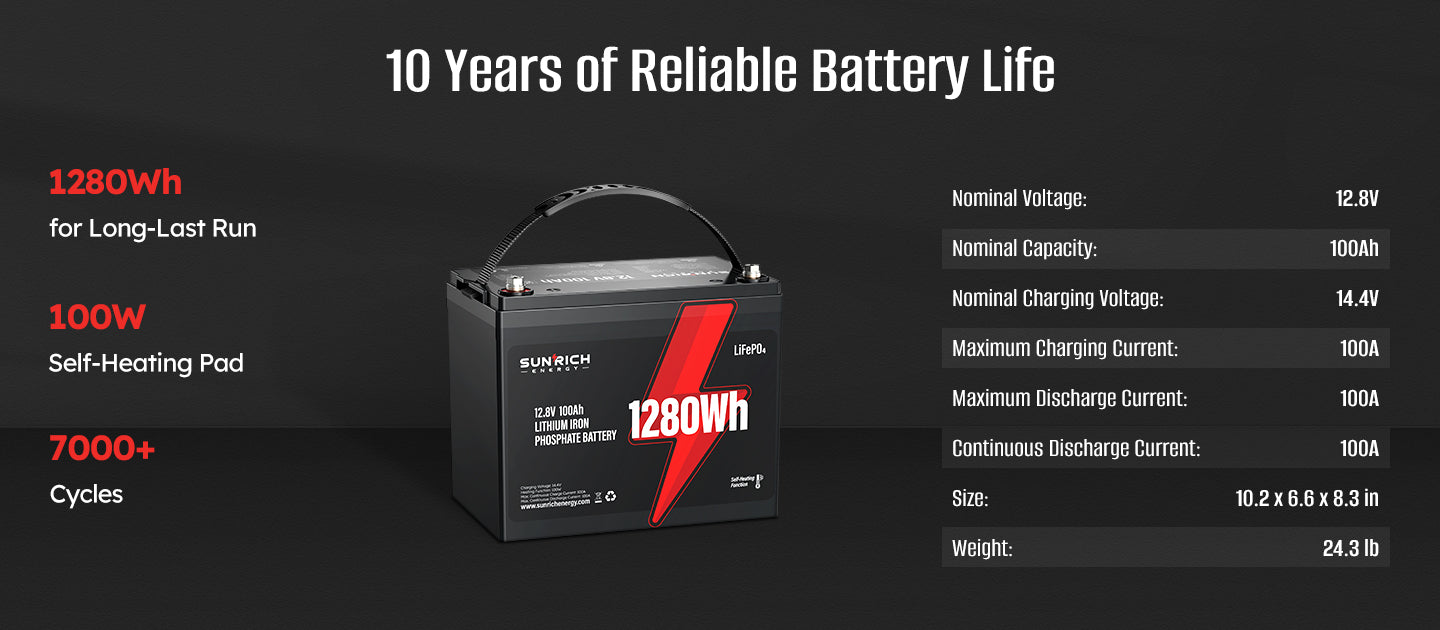

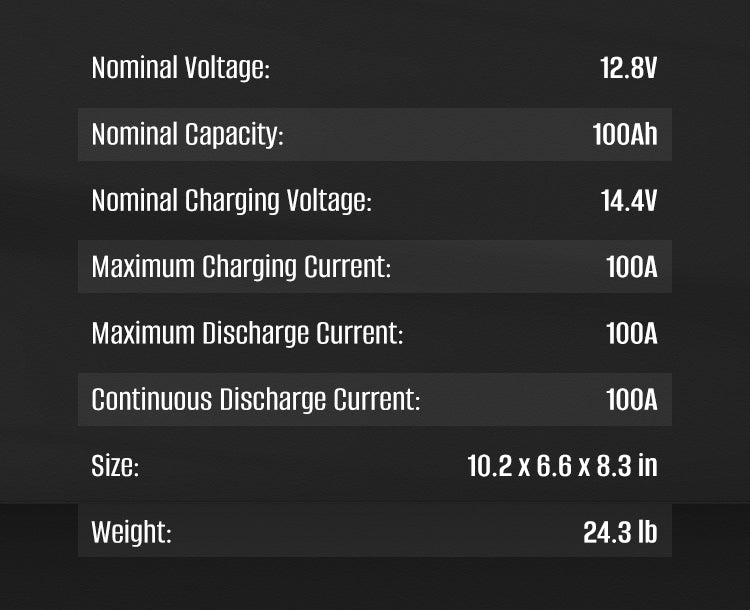

    12V 100Ah LiFePO4 Battery

    Nominal voltage: 12.8V
    Nominal capacity: 100Ah
    Nominal energy:1280Wh
    Nominal charging voltage: 14.4V
    Maximum charging current: 100A
    Maximum discharge current: 100A
    Continuous discharge current: 100A
    Size:10.2 x 6.6 x 8.3 in
    Weight:24.3 lb



    NOVA 2000W 12V Inverter



    Rated Voltage: 12V DC
    Continuous Power:  2000W
    Peak Surge:  4000W
    Waveform: Pure Sine Wave
    Input Voltage:  12V DC
    Output Voltage:  120V AC
    Output Frequency:  60 Hz
    Output Efficiency: >88%
    AC Output Sockets: 3
    USB Power Port: 5V / 2.1A
    Power Output Control: AC On/off Switch
    Operation Temperature:  14°F to 122°F
    Dimensions: 16.1 x 9.6 x 4.0 in
    Weight: 10.1 lb



    40 Amp MPPT Solar Charge Controller
    System Nominal Voltage: 12/24V Auto
    Max. PV Open Circuit Voltage: 100VOC
    Charging Technology: MPPT
    Max PV Charging Current: 40A
    Max. Recommended PV Input Power: 600 Watt (12V) / 1200 Watt (24V)
    Battery Type Preset: Crystal, Gel, AGM, WET, Calcium / LCO, LFP, LTO
    Housing Case Color: Black / Grey
    IP Grade: IP43 for Inside PCBA, IP22 for Connection Area
    Net Weight: 1.17kg / 2.58lb
    Dimensions (L*W*H): 195*142*74 mm / 7.7*5.5*2.9 in
