Features

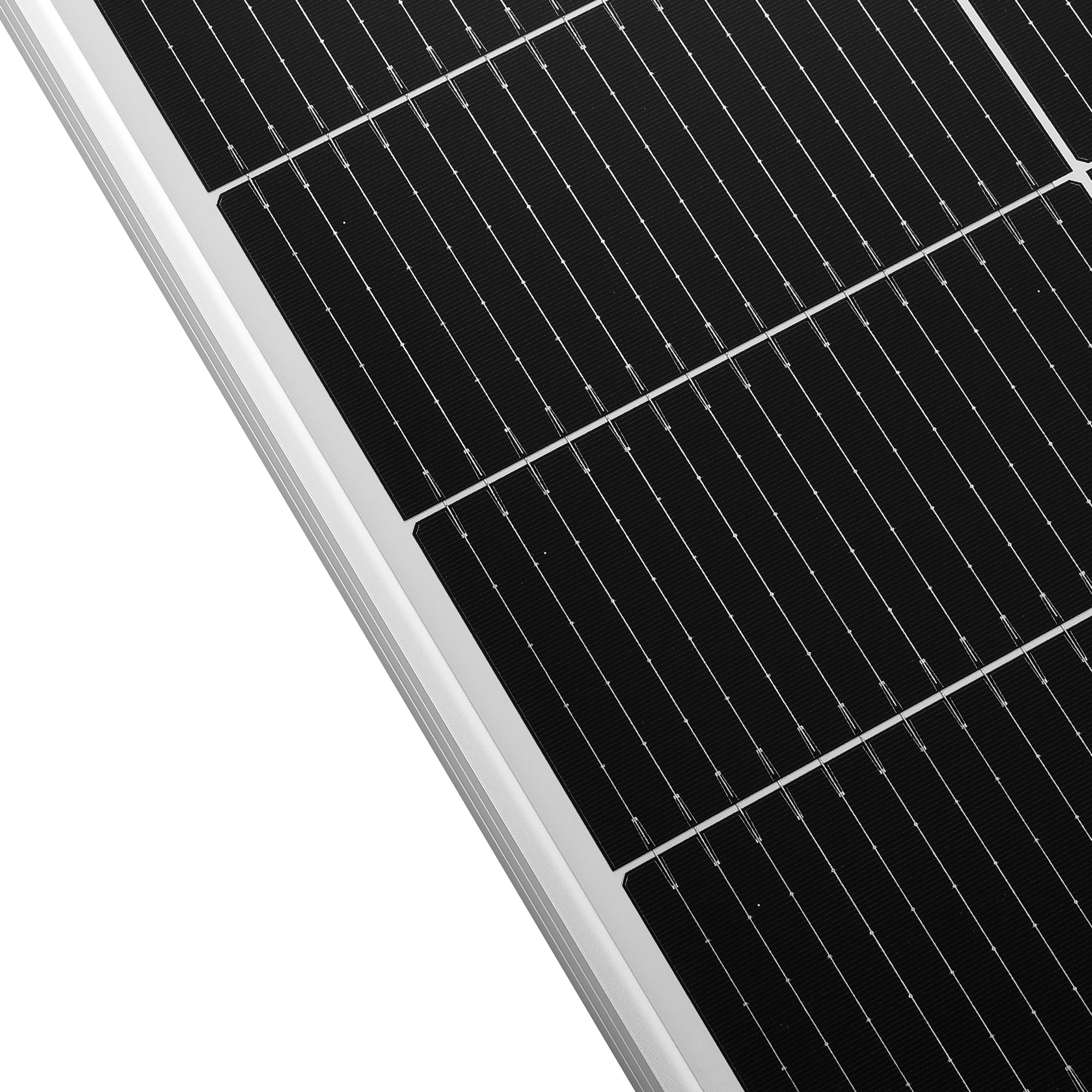

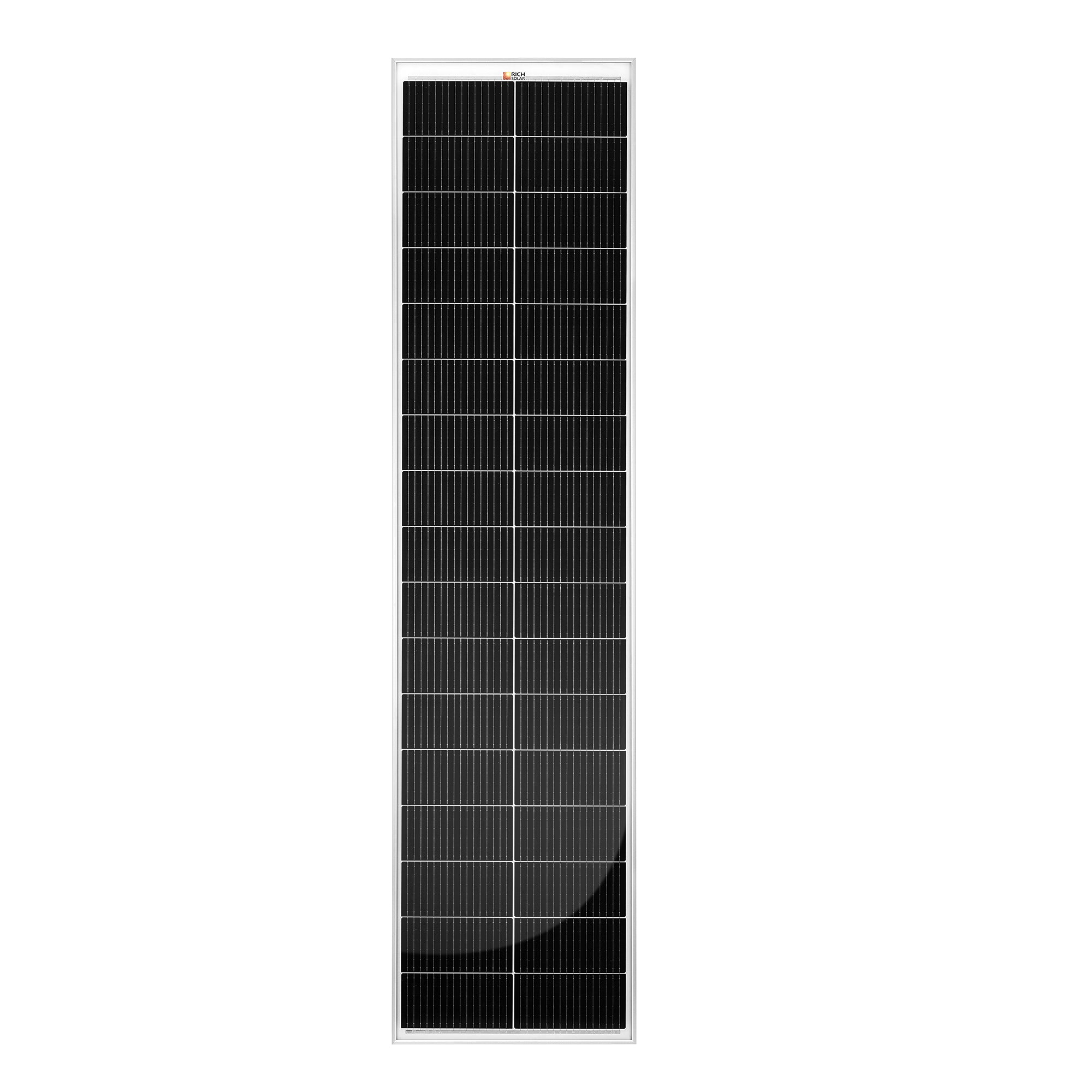

• 16-busbar N-Type TOPCon monocrystalline cells with up to 25.1% efficiency
• 34-cell configuration delivers a reliable 130W output
• 3.2 mm AR-coated tempered glass maximizes sunlight capture and durability
• Power tolerance 0 to +5W ensures at least the rated output
• Excellent low-light performance on cloudy days and at dawn/dusk
• Rigorously tested for UV, thermal cycling, humidity freeze, and more
• PID-resistant and double EL-inspected to prevent microcracks
• Certified to withstand 2400 Pa wind and 5400 Pa snow load
• Perfect for off-grid systems, RVs, boats, and mobile power setups

Installation

• Easy installation and handling for various applications.

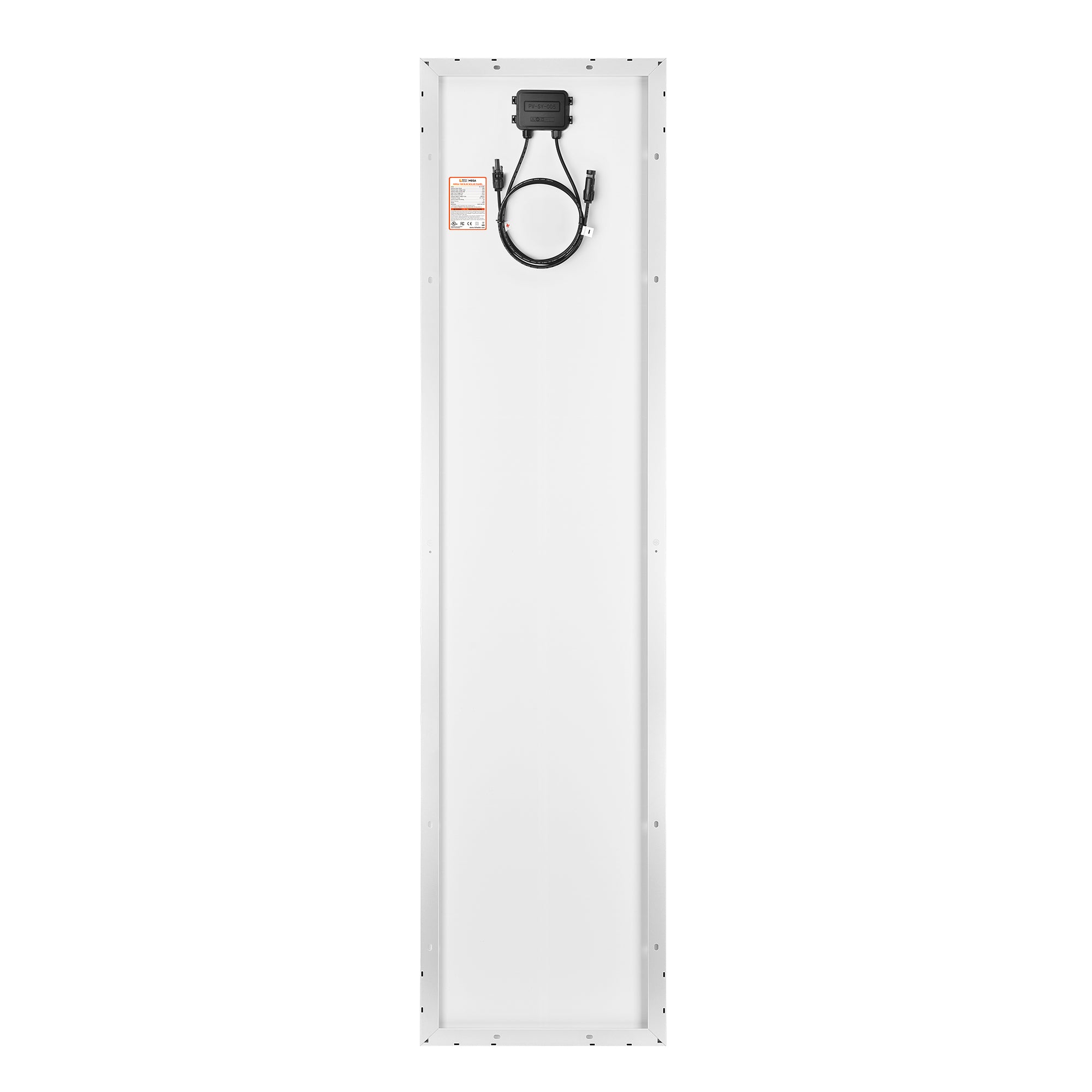

• Pre-drilled holes are compatible with ground mounts, Z-brackets, pole mounts, and tilt mounts.
• Compatible with on-grid and off-grid inverters.

Warranty

• 25-year output warranty
• 10-year workmanship

Specifications

• Maximum Power(Pmax): 130W
• Maximum Power Voltage(Vmp): 19.6V
• Maximum Power Current(Imp): 6.63A
• Open Circuit Voltage(Voc): 23.6V
• Short Circuit Current(Isc): 6.92A
• Maximum System Voltage(Vmax): 1000 VDC
• Maximum Series Fuse Rating: 15A

• Temperature Range: -40℉~ +185℉
• Weight: 13.9lb

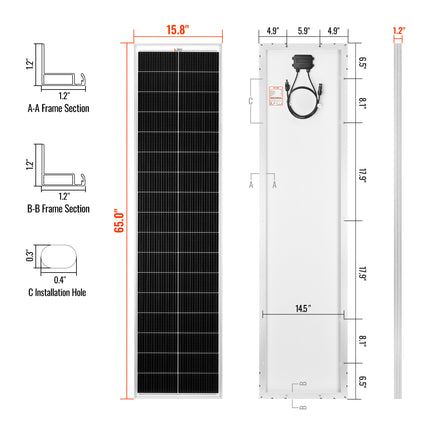

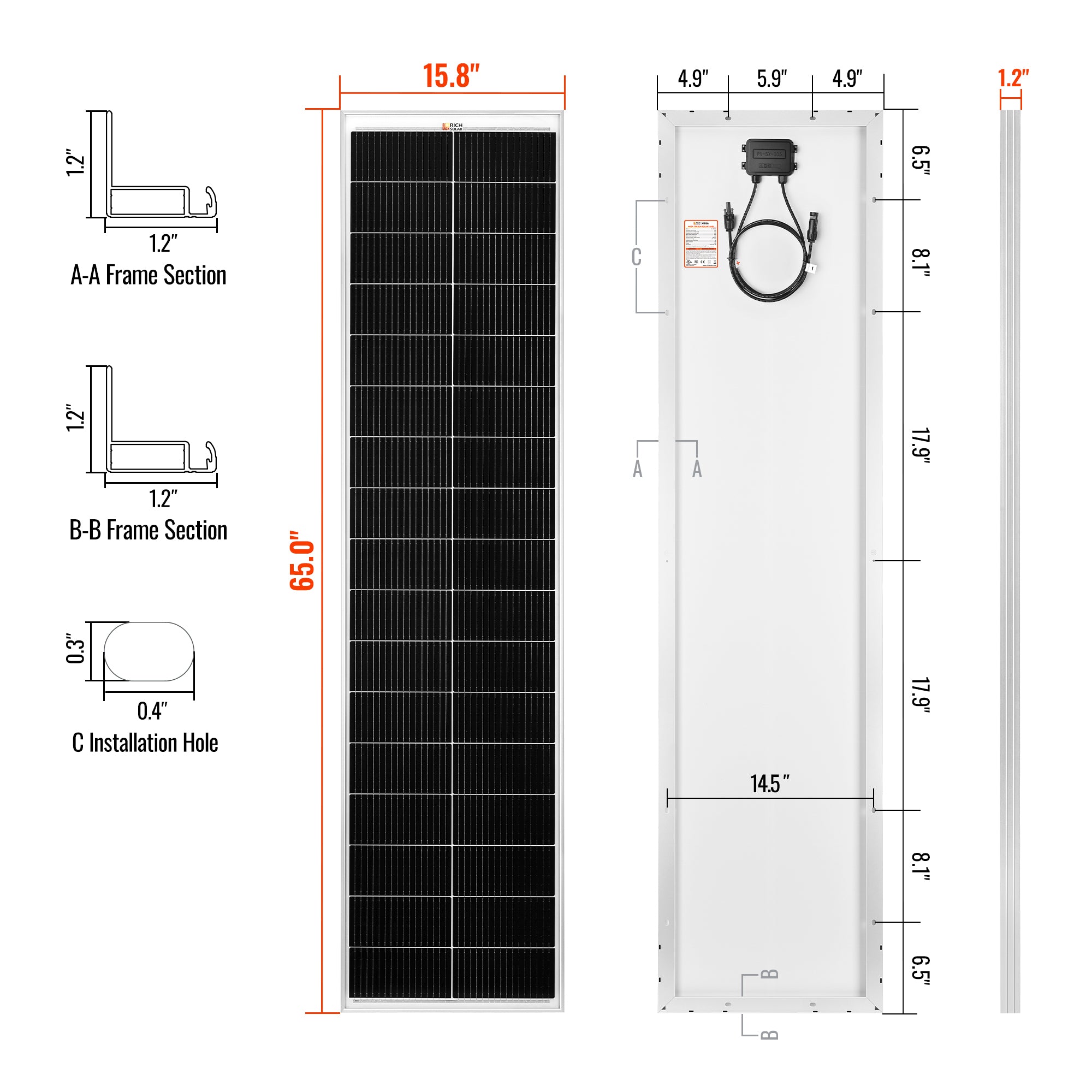

• Dimensions:  65.0in x 15.8in x 1.2in

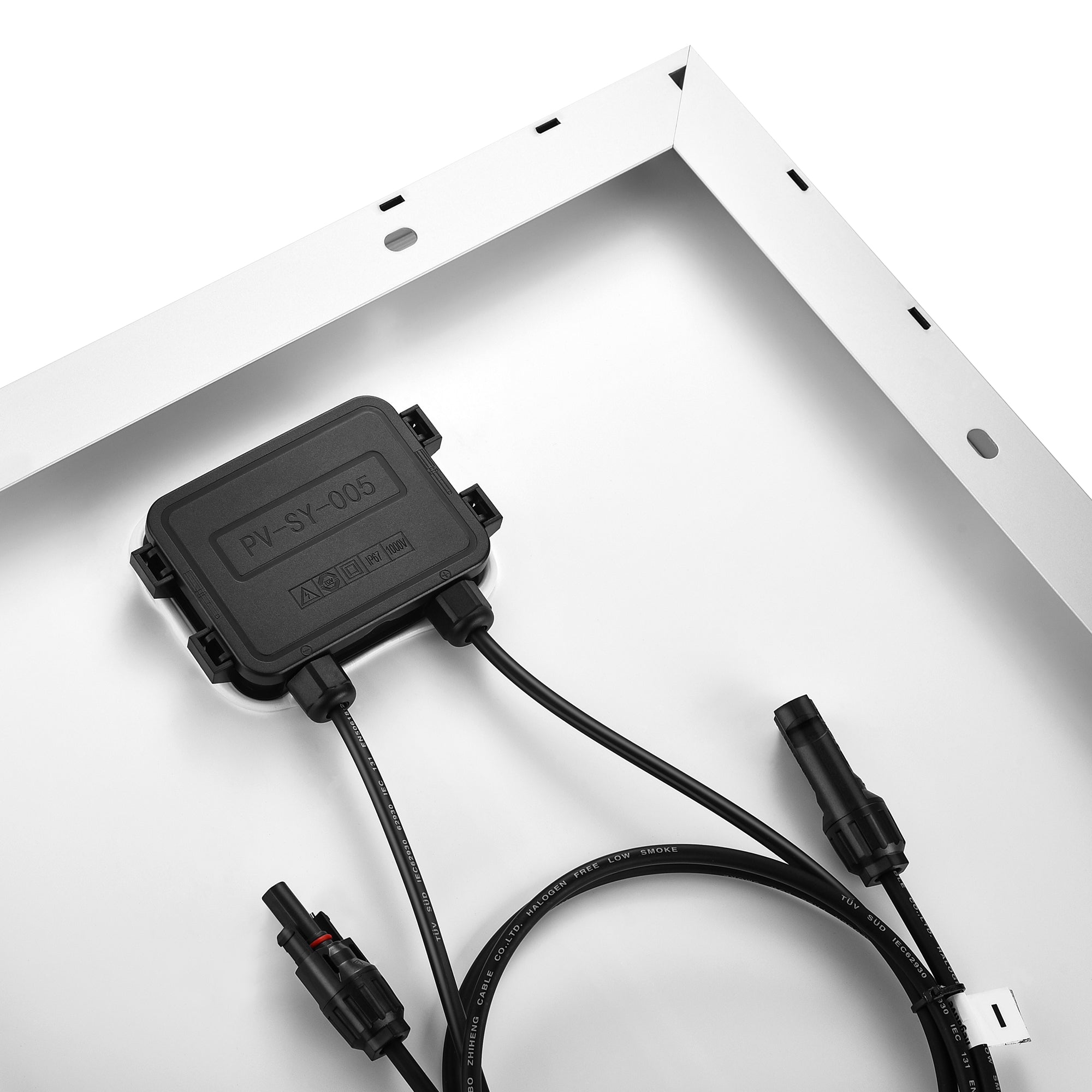

Built-in Components

• Panel leads (pair): 3 feet each

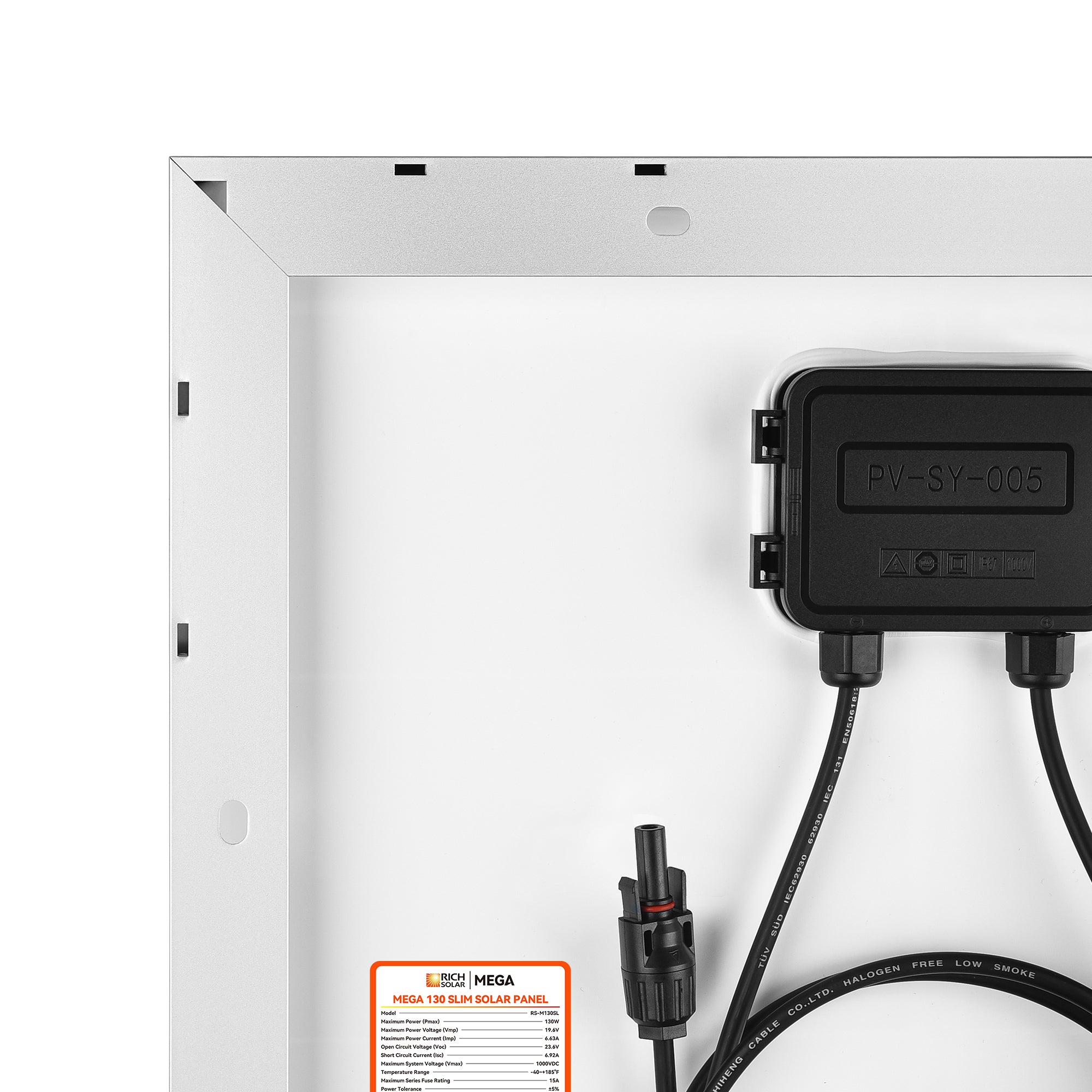

• IP67-rated waterproof junction box
• IP67-rated waterproof solar connectors
• Bypass diodes built into the junction box
