Inline Fuse Holder | Waterproof Replacement Inline Fuse Holder

SKU: RS-SC10F

Forma del producto

$15.99

10% OFF

Final Price: $14.40

PD10

Copy Code

  • Fuse Can Replace.
  • Compatible with PV cables with different insulation diameters.
  • Designed for a wide range of DC applications.
  • Simple plug-and-play.
  • Auto-lock equipment of male and female points renders connections easy and reliable.

    • Free Returns

    Features

    • Fuse Can Replace

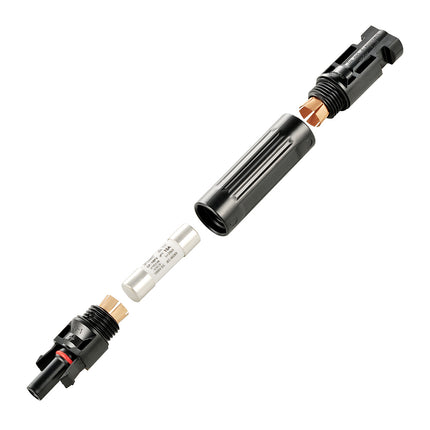

    • 10A/15A/20A/30A fuse embedded into a waterproof fuse holder, solar connector lead on each end.
    • Compatible with PV cables with different insulation diameters.
    • Designed for a wide range of DC applications.
    • Simple plug-and-play.
    • Auto-lock equipment of male and female points renders connections easy and reliable.
    • Waterproof fuse holder - IP67 Class Protection.
    • Insulation material PPO.
    • High current-carrying capacity.
    • Prevent large currents from damaging the solar panels.
    • Designed to provide complete single-circuit protection to your solar power array.
    • Protection Class II
    • Connector adopts touch and insertion of reed with inner-knob type.
    • Purchase this product for extra protection on your system.

    Specifications

    • Rated Current: 10A/15A/20A/30A
    • Degree of Protection: IP2*/IP67
    • Rated Voltage: 1000 V DC
    • Flame Class: UL94-V0
    • Test Voltage: 6000V (50Hz,1 min)
    • Safety Class: II
    • Overvoltage Category: CATIII
    • Suitable Connector: Solar Connector
    • Contact Resistance of Plug Connector: 1mΩ
    • Insertion Force / Withdrawal Force: ≤50N / ≥50N
    • Contact Material: Copper, Silver Plated
    • Insulation Material: PPO
    • Temperature Range: -40 to +125°C
