400 Watt 12 Volt Complete Solar Kit with Two 100Ah LiFePO4 Batteries

SKU: SE-K4002

Forma del producto

$1,999.99$1,499.99


  • High-Efficiency Solar Panel:100W monocrystalline, anti-reflective for max absorption.
  • Easy Installation: No tools, plug-and-play compatible.
  • Reliable and Convenient: Digital MPPT shows voltage and prevents overcharge.
  • 25-Year Warranty: Built for long-term use.

    • Free Returns

    The 400 Watt Complete Kit Includes:

    • 4 X 100W Solar Panel
    • 1 X 40A MPPT Solar Charge Controller
    • 2 X 100Ah LiFePO4 Battery  SE-B100
    • 1 X 2000W 12V Pure Sine Wave Inverter
    • 1 X BT Bluetooth Module
    • 4 X Z Bracket Set
    • 3 X Solar Y Branch Connector MMF
    • 1 X 20FT 10AWG Solar Panel to Charge Controller Adaptor Kit
    • 1 X 10FT 8AWG Battery to Charge Controller Tray Cables
    • 2 X 1.5FT 2AWG Copper Battery Interconnect Cable for 5/16 in Lugs
    • 1 X 2FT 6AWG ANL Fuse Cable with Double Ring Terminals for 5/16 in Lugs
    • 1 X 40A ANL Fuse Set w/ Fuse
    • 1 X 30A Solar Connector Waterproof in-line Fuse Holder w/ Fuse
    • 2 X 3FT 2/0 Gauge Battery Inverter Cables

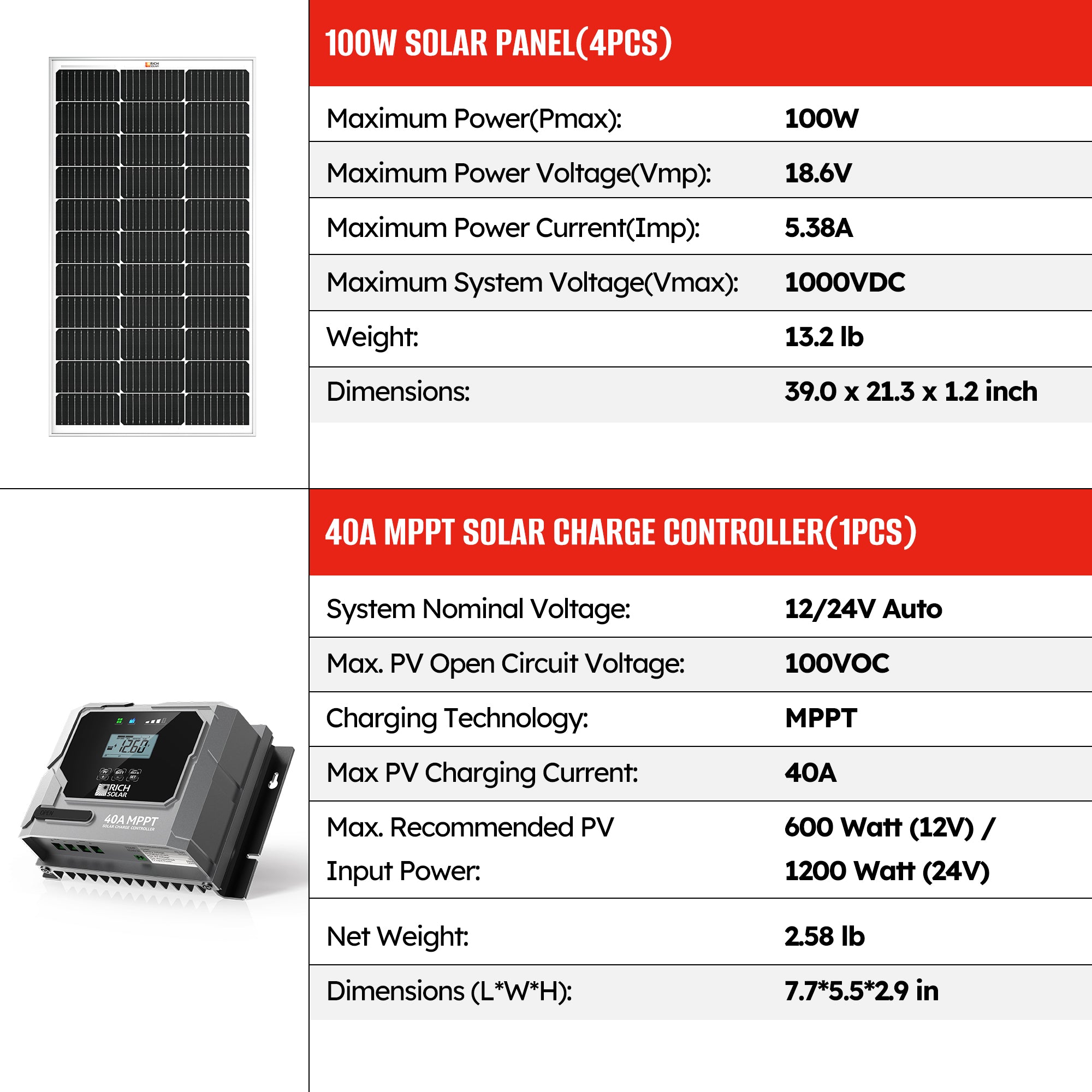

    4 x 100W Solar Panel

    • Maximum Power(Pmax): 100W
    • Maximum Power Voltage(Vmp): 18.6V
    • Maximum Power Current(Imp): 5.38A
    • Open Circuit Voltage(Voc): 22.8V
    • Short Circuit Current(Isc): 5.78A
    • Maximum System Voltage(Vmax): 1000VDC
    • Weight: 15 lb
    • Dimensions: 39.0 x 21.3 x 1.2 inches

    1 x 40A MPPT Solar Charge Controller

    • System Nominal Voltage: 12/24V Auto
    • Max. PV Open Circuit Voltage: 100VOC
    • Charging Technology: MPPT
    • Max PV Charging Current: 40A
    • Max. Recommended PV Input Power: 600 Watt (12V) / 1200 Watt (24V)
    • Battery Type Preset: Crystal, Gel, AGM, WET, Calcium / LCO, LFP, LTO
    • Housing Case Color: Black / Grey
    • IP Grade: IP43 for Inside PCBA, IP22 for Connection Area
    • Net Weight: 1.17kg / 2.58lb
    • Dimensions (L*W*H): 195*142*74 mm / 7.7*5.5*2.9 in

    2 x 100Ah LiFePO4 Battery with Heated

    • Nominal voltage: 12.8V
    • Nominal capacity: 100Ah
    • Nominal energy1280Wh
    • Nominal charging voltage: 14.4V
    • Maximum charging current: 100A
    • Maximum discharge current: 100A
    • Continuous discharge current: 100A
    • Size10.2 x 6.6 x 8.3 in
    • Weight24.3 lb

    1 x 2000W 12V Pure Sine Wave Inverter

    • Rated Voltage: 12V DC
    • Continuous Power:  2000W
    • Peak Surge:  4000W
    • Waveform: Pure Sine Wave
    • Input Voltage:  12V DC
    • Output Voltage:  120V AC
    • Output Frequency:  60 Hz
    • Output Efficiency: 88%
    • AC Output Sockets: 3
    • USB Power Port: 5V / 2.1A
    • Power Output Control: AC On/off Switch
    • Operation Temperature:  14°F to 122°F
    • Dimensions: 16.1 x 9.6 x 4.0 in
    • Weight: 10.1 lb

    1 x BT Bluetooth Module

    • Input Voltage: 5V-12V
    • Standby Power Consumption: 0.04W
    • Operating Power Consumption: 0.05W
    • Communication Range: 15m
    • Serial Baud Rate: Fixed Baud Rate 9600bps
    • Cable Length: 5.00 m (16.4 ft)
    • Dimensions: 2.6 X 2.01 X 0.61 In
    • Installation Dimensions: 57.5, φ3.2mm (2.26, φ0.13in)
    • Protection Grade: IP67
    • Weight: 120 g (4.2oz)



    3 x Solar Y Branch Connector

    • Rated Current: 30A
    • Maximum Voltage: 1000VDC
    • Waterproof: IP67
    • Wire Range: 10AWG, 12AWG
    • Insulation Material: PPO + PA
    • Contact Material: Tinned Cooper
    • Temperature Range: 14°F ~ 194°F
    • Safety Class: II

    1 x 20FT 10AWG Solar Panel to Charge Controller Adaptor Kit

    • Length: 20 feet
    • AWG: 10
    • Rating Voltage: DC: 1.8KV / AC: 0.6~1KV
    • Waterproof: IP65
    • Fire Rated: IEC60332-1
    • Insulation Material: TPE
    • Contact Material: Tinned Copper
    • Temperature Range: 14°F ~ 194°F



    1 x 10FT 8AWG Battery to Charge Controller Tray Cables

    • Length: 10 feet
    • AWG: 8
    • Rating Voltage: 600/1000V
    • Temperature: -40°F to +185°F

    2 x 1.5FT 2AWG Copper Battery Interconnect Cable

    • Length: 1.5 feet
    • AWG: 2
    • 100% Pure Copper
    • Terminals: 5/16'' Both Ends

    1x 2FT 6AWG Copper ANL Fuse Cable

    • Length: 2 feet
    • AWG: 6
    • 100% Pure Copper
    • Terminals: 5/16'' Both Ends

    1 x 40A ANL Fuse Set w/ Fuse

    • Current Rating:  40A
    • Voltage Rating: 72V
    • Interrupt Capacity: 240A (48V)

    1x 30A Solar Connector Waterproof in-Line Fuse Holder w/ Fuse

    • Rated Current: 30A
    • Degree of Protection: IP2*/IP67
    • Rated Voltage: 1000 V DC
    • Flame Class: UL94-V0
    • Test Voltage: 6000V (50Hz,1 min)
    • Safety Class: II
    • Overvoltage Category: CATIII
    • Suitable Connector: Solar Connector
    • Contact Resistance of Plug Connector: 1mΩ
    • Insertion Force / Withdrawal Force: ≤50N / ≥50N
    • Contact Material: Copper, Silver Plated
    • Insulation Material: PPO

    2 x 3FT 2/0AWG Battery Inverter Cables for 3/8 in Lugs

    • Length: 3 feet
    • AWG: 2/0
    • 100% Pure Copper
    • Terminals: 3/8'' Both Ends
