Features

Flexible & Lightweight Design

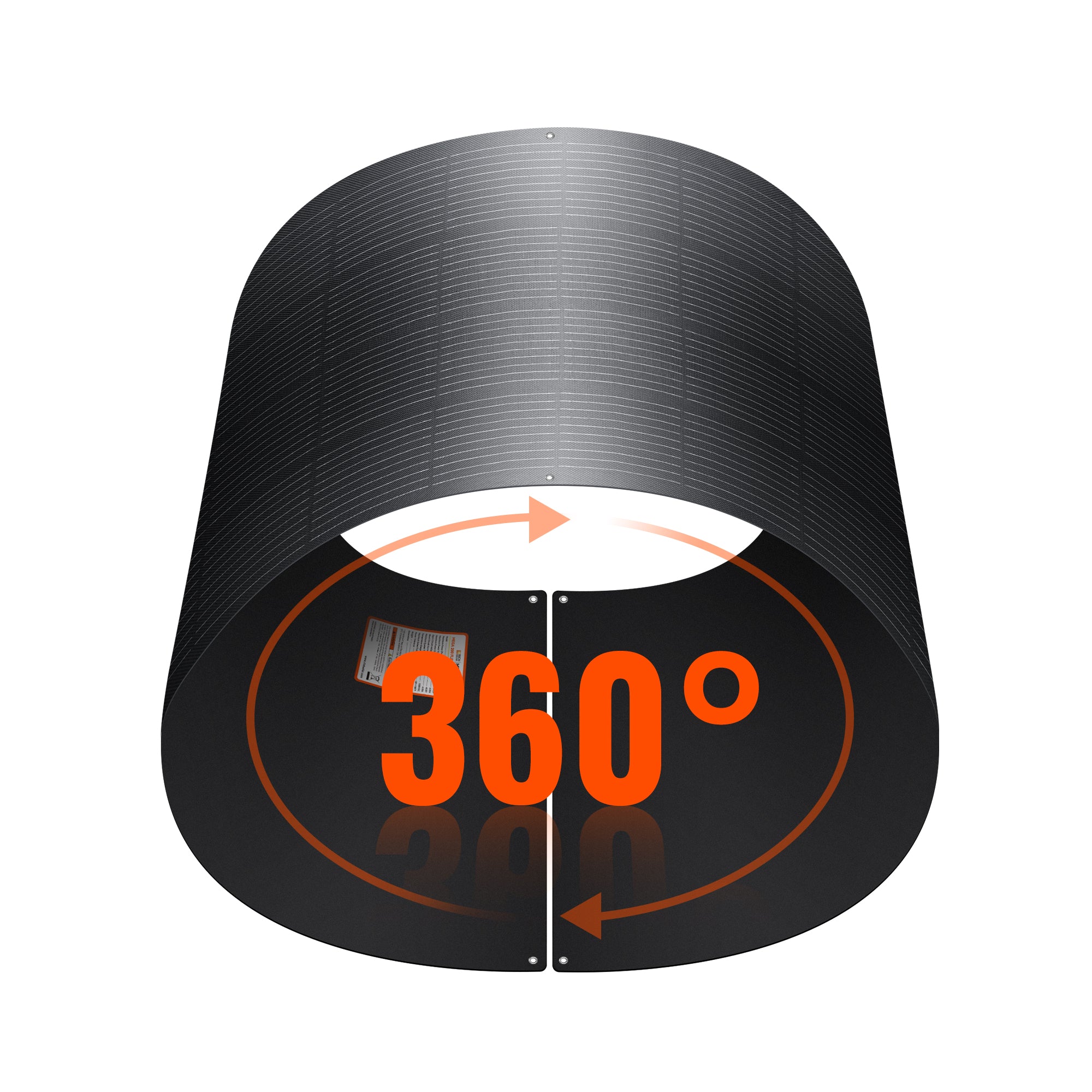

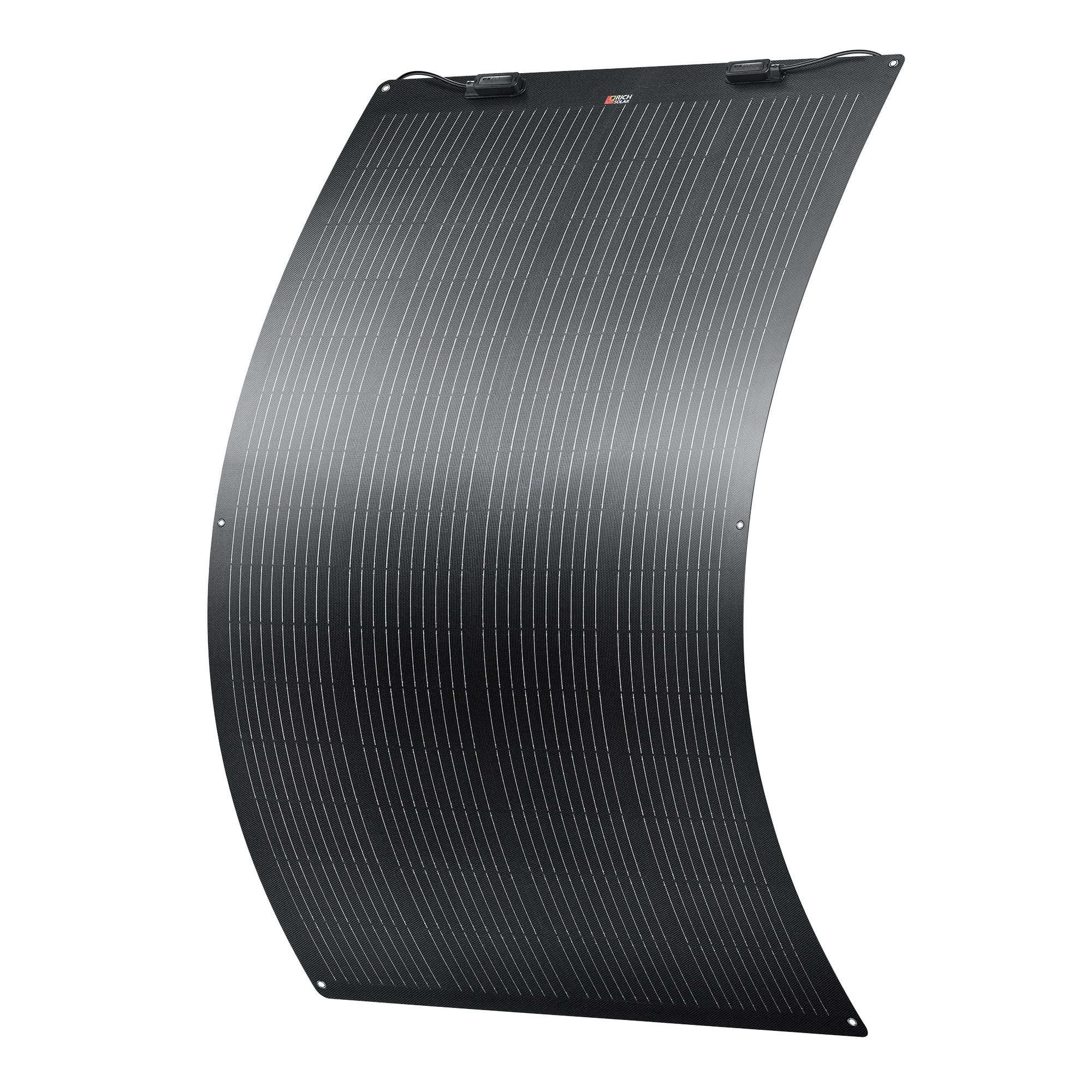

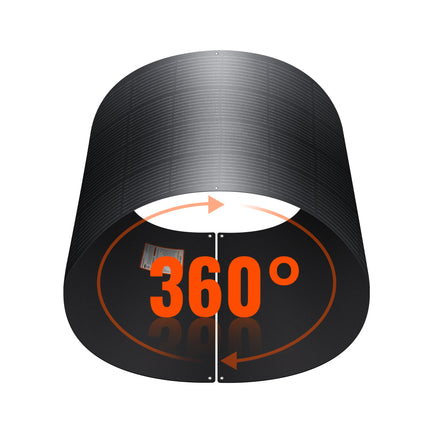

• Full 360° Flexibility: Adapts effortlessly to curved or irregular surfaces—perfect for RV roofs, boat decks, and campers.
• Ultra-Slim & Portable: At just 0.1" thick and 8.1 lb light, it’s sleek, easy to carry, and effortless to install.

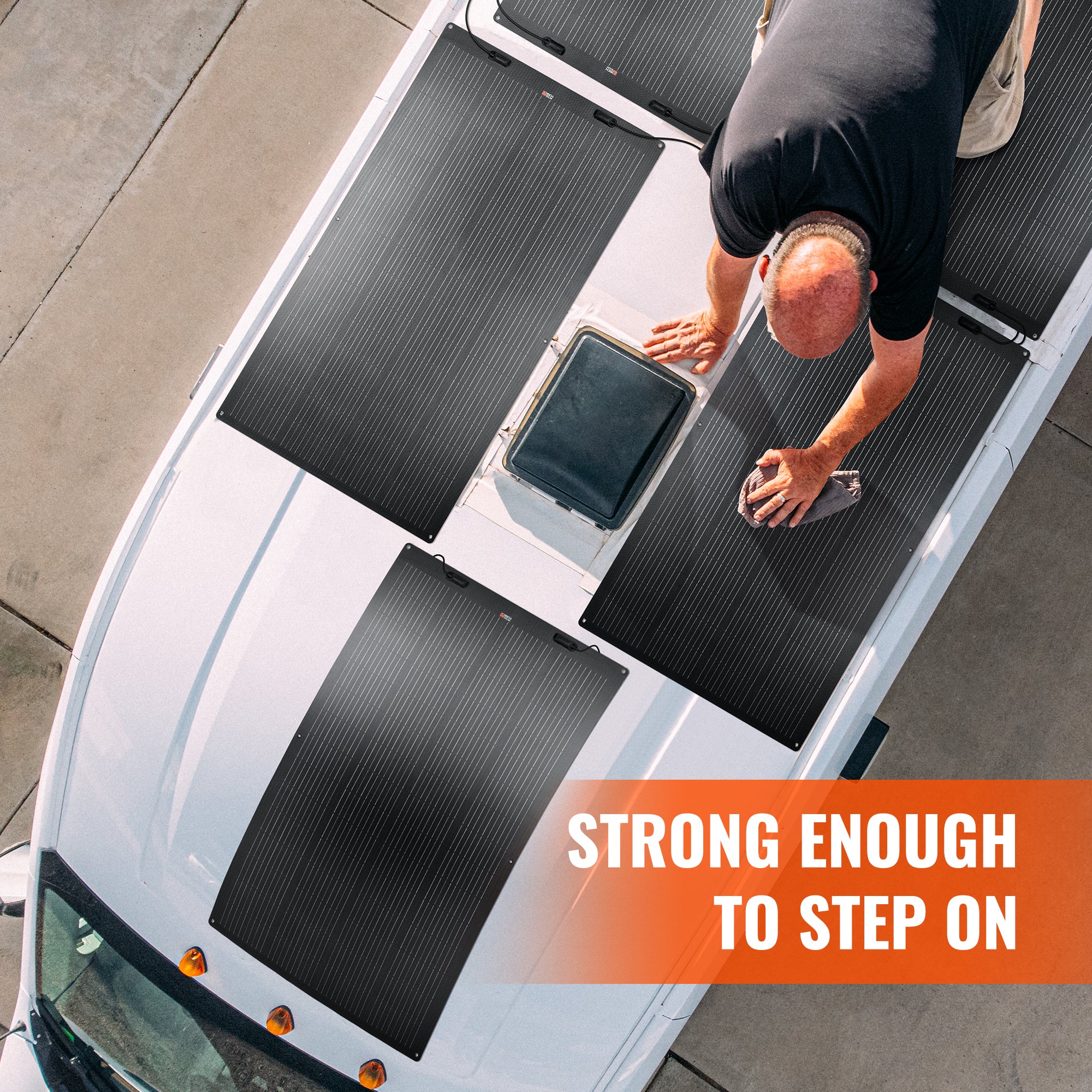

• Tough Walkable Surface: Reinforced laminate structure endures foot traffic and daily wear.

High-Efficiency Solar Technology

• 10-Busbar PERC Cells: Maximize sunlight absorption and electrical flow for higher conversion efficiency.
• Reliable in Low Light: Consistent power output during cloudy weather, dawn, or dusk.
• Optimized for Heat: Low temperature coefficient maintains strong performance in high temperatures.

Built for Harsh Outdoor Conditions

• IP68 Waterproof & Dustproof: Ensures reliable performance in marine, desert, or humid environments.
• Heavy-Duty Load Rating: Tested for 5,400 Pa front load and 2,400 Pa back load.
• Wide Temperature Endurance: Operates from -40°F to +185°F, ideal for extreme climates.

Quick & Versatile Installation

• Plug-and-Play Connection: Compatible with standard MC4 connectors for both series and parallel setups.
• Mount Anywhere: Pre-drilled holes simplify installation on curved or flat surfaces.

Specifications

• Maximum Power(Pmax): 200W
• Maximum Power Voltage(Vmp): 34.2V
• Maximum Power Current(Imp): 6.02A
• Open Circuit Voltage(Voc): 40.8V
• Short Circuit Current(Isc): 6.33A
• Maximum System Voltage(Vmax): 1500VDC
• Maximum Series Fuse Rating: 20A
• Temperature Range: -40~+185°F
• Weight: 8.1 lb

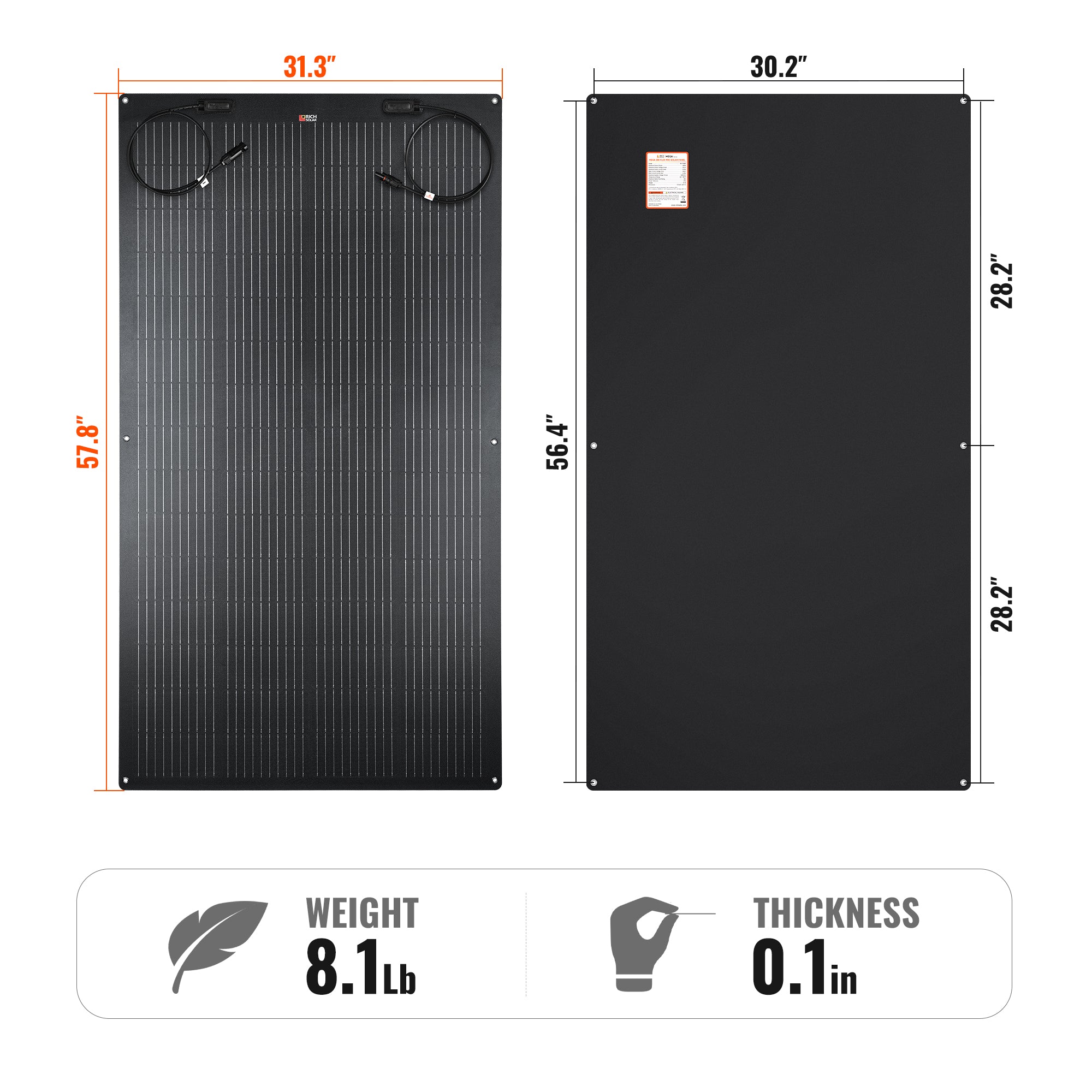

• Dimensions: 57.8 x 31.3 x 0.1 in
• Material and Workmanship Warranty: 1 year
